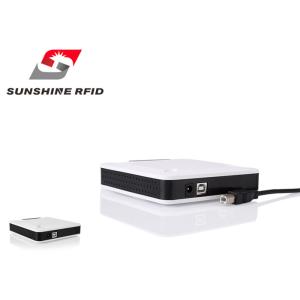

Integrated Desktop USB UHF rfid reader writer With Free SDK And API For Warehousing
Product Advantag
1. Employed IMPINJ R2000 RF Chips, up to -82dbm receiving
sensitivity and the highest performance in this field makes this
module more suitable for harsh application environment.
2. Low power consumption, brilliant performance.
3. Provide the most comprehensive functions SDK and ports, easy to
integrate RFID software.
4. Adopted integrating RF chip, module performance is more stable,
and more suitable for harsh application environment.
5. The use of carrier wave cancellation technology makes the
tagsreading more accurate and reading scope wider.
6. Enhanced noise suppression function for reliable data capturing.
7. High precision return signal strength (RSSI).
8. Excellent performance of anti-interference
9. Plastic case, small and portable, rugged and durable.
Product Electrical Parameters
| NO. | Name | Parameters |
| 1 | Working Voltage | DC +12V |
| 2 | Working Temperature | -25～+65℃ |
| 3 | Working Humidity | ≤95%(+25℃) |
| 4 | Storage Temperature | -40～+80℃ |
| 5 | Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| 6 | Working Frequency | 840--960 MHz |
| 7 | Supporting Working Areas | China 1, China 2,US, Canada and other regions following U.S. FCC, Europe and other regions following ETSI EN 302,208 with & without LBT regulations, Japan, Korea, Malaysia, Taiwan |
| 8 | Output Power | Software adjustable, step interval 1.0dB, maximum +30dBm |
| 9 | Output Power Flatness | ±0.2dBm |
| 10 | Receiving Sensitivity | -82dBm |
| 11 | RF Port Standing Wave | ≤1.5 |
| 12 | Reading Range | Maximum 0.5m (relate to tags type, transmitted power and application environment) |
| 13 | Writing Range | Maximum 0.2m (relate to tags type, transmitted power and application environment) |
| 14 | Interface Communication Rate | 115200bps |
| 15 | Working Temprature Detection | Support |
| 16 | RSSI | Support |
| 17 | Antenna Type | -1dBi ceramic antenna |
| 18 | Communication Port | USB |
| 19 | Buzzer | Yes |
| 20 | LED | Red(power indicator) Green(status indicator) |
| 21 | Enclosure | plastic case |
| 22 | Size | 12.0*12.0*3.0CM |
Application
|
|
