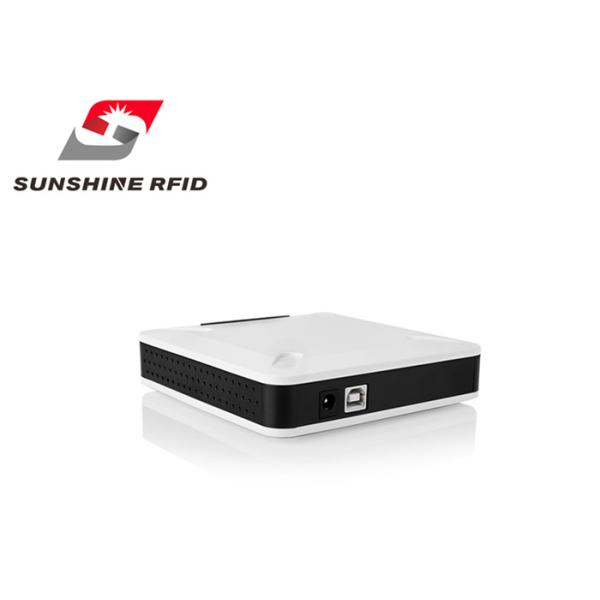

High Efficient Short Range Rfid Reader Desktop For Industrial Automation

SUNSHINE RFID Technology Co.,Limited
Contact Now
    Buy cheap High Efficient Short Range Rfid Reader Desktop For Industrial Automation from wholesalers

    Buy cheap High Efficient Short Range Rfid Reader Desktop For Industrial Automation from wholesalers
    • Buy cheap High Efficient Short Range Rfid Reader Desktop For Industrial Automation from wholesalers

    High Efficient Short Range Rfid Reader Desktop For Industrial Automation

    Ask Lasest Price
    Brand Name : SUNSHINE
    Model Number : F5002
    Certification : CE,ROSH
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

    High Efficient Short Range Rfid Reader Desktop For Industrial Automation

    Passive rfid readr Desktop Reader with USB and free SDK and DEMO


    Product Advantage


    • Employed IMPINJ R500 and R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
    • Low power consumption, brilliant performance.
    • Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
    • Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
    • The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
    • Enhanced noise suppression function for reliable data capturing.
    • High precision return signal strength (RSSI).
    • Excellent performance of anti-interference
    • Plastic case, small and portable, rugged and durable.

    Product Electrical Parameters


    NO.NameParameters
    1Working VoltageDC +12V
    2Working Temperature-25~+65℃
    3Working Humidity≤95%(+25℃)
    4Storage Temperature-40~+80℃
    5Tag ProtocolEPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
    6Working Frequency840--960 MHz
    7Supporting Working AreasChina 1, China 2,US, Canada and other regions following U.S. FCC, Europe and other regions following ETSI EN 302,208 with & without LBT regulations, Japan, Korea, Malaysia, Taiwan
    8Output PowerSoftware adjustable, step interval 1.0dB, maximum +30dBm
    9Output Power Flatness±0.2dBm
    10Receiving Sensitivity-82dBm
    11RF Port Standing Wave≤1.5
    12Reading RangeMaximum 0.5m (relate to tags type, transmitted power and application environment)
    13Writing RangeMaximum 0.2m (relate to tags type, transmitted power and application environment)
    14Interface Communication Rate115200bps
    15

    Working Temprature

    Detection

    Support
    16RSSISupport
    17Antenna Type-1dBi ceramic antenna
    18Communication PortUSB
    19BuzzerYes
    20LED

    Red(power indicator)

    Green(status indicator)

    21Enclosureplastic case
    22Size12.0*12.0*3.0CM
